Bàn Mixer

Showing 121–122 of 122 results

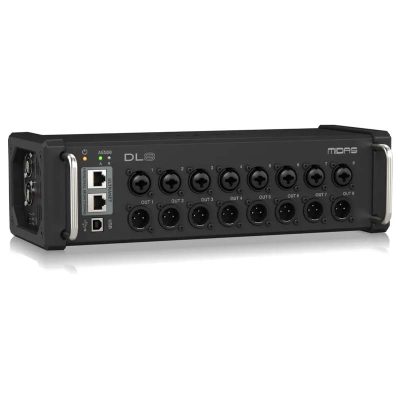

Stagebox kỹ thuật số Midas DL8

Stagebox kỹ thuật số Midas DL8

0 đánh giá
Liên hệ
Yamaha Tio1608-D2

Yamaha Tio1608-D2

0 đánh giá
Liên hệ

Thông số kỹ thuật

Tio1608-D2
Sampling frequency rate External 44.1kHz, 48kHz, 88.2kHz, 96kHz
Signal delay Less than 1.3ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=96kHz; Less than 2.6ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Total harmonic distortion Less than 0.2% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2kHz, 96kHz; Less than 0.1% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18 dB/octave filter @80kHz
Frequency response +0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT
Dynamic range 108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz; 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
Hum & noise level Equivalent input noise -128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz *Measured with A-weighting filter
Residual output noise -86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off *Measured with A-weighting filter
Crosstalk -100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
Heat dissipation 100-240V, 50/60Hz, 43.5kcal/h
Power requirements 100-240V, 50/60Hz
Power consumption 50W
Dimensions W 480mm (18.9”)
H 88mm (3.5”)
D 364mm (14.4”)
Net weight 5.7kg (12.6lbs)
Accessories Owner’s Manual, Power Cord (2.5m), Rubber stoppers (4)
Others Temperature Range: Operating temperature range: 0 – 40℃, Storage temperature range: -20 – 60℃
